Occupancy Detector UPAS26

Occupancy Detector PAS 22UPAS26

• 2000 W

• 360°flush ceiling mount

• Occupancy Detector with IR remote controller







  • 360°micro motion detectable
  • Ceiling surface mount design
  • Photo sensor inside for smart control
  • Run-on time adjustable-Ambient lux. setting adjustable
  • Up to 2000W loading
  • Smart RelayTMto protect product life
  • Support IR remote control for On/Off/Auto control

Patent :

M399426 / 202010012599.5 / CN201780930U

Ordering information

PAS26‐0 2000W ceiling mount occupancy detector
2000W ceiling mount OD with remote control


E207 : wall box

Power requirement 220 ~ 240VAC / 50Hz
Loading 2,000W for incandescent
1,000W for fluorescent
Detection Angle 360°
Detection Range @2.5m height Φ= 6m for micro motion
Φ= 12m for walk across motion
Run-on time setting 5 sec. ~ 15 min.
Ambient light setting 10 ~ 500 lux.
Operation mode Auto/On/Off
Warm-up time Approximately 1 minute
Smart Relay Yes
Isolation Protection Class II
Water proof IP20
Working temp. -10℃~+40℃
Storage temp. -20℃~+70℃
Power consumption 1W maximum
Dimension (W*L*D) 126.6mm dia. X 71.2mm (D)
Regulation EN60669-1, EN60669-2-1,
EN61000-6-3, EN61000-6-1
EN61547, EN55015

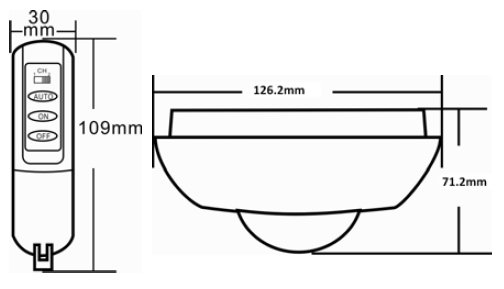

Dimension: mm (inch)

Detection Area ‐360°

Installation height Sitting Walking
2.5 meter 28.27 M2
3m x 3m x 3.14
113.1 M2
6m x 6m x 3.14

Detection Area ‐360°

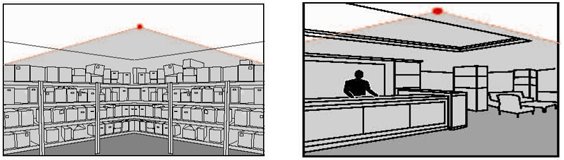

Application Example

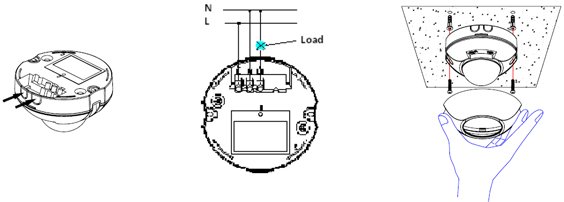

Wiring Terminals

L : AC power input
N : AC power input
LS : AC power output to load

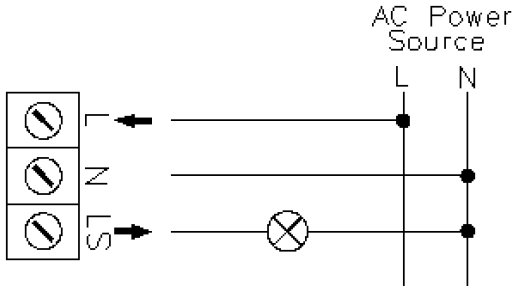

Connection Example
